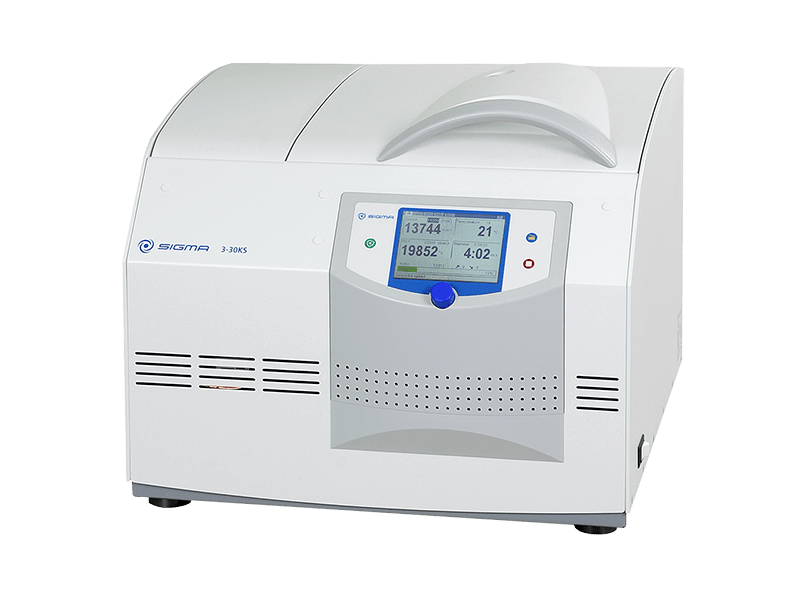

Sigma 3-30KS
Refrigerated high speed centrifuge
Outstanding high speed performance
400 ml
16,000 rpm
20,035 x g
564 ml
30,000 rpm
70,121 x g
Refrigerated and heated benchtop centrifuge
Sigma 3-30KHS
This high speed centrifuge combines innovative technology with many decades of experience in the field of high speed laboratory centrifuges.
Positioned between laboratory centrifuges and ultracentrifuges, this refrigerated and heated centrifuge features outstanding performance characteristics and excellent value for money.
High RCF values of more than 70,000 x g enable fast separation, even with microscopic particles and cell fragments. This makes the Sigma 3‑30KHS especially suitable for high speed applications in fields such as cellular biology, molecular biology, diagnostics and clinical biology, nanotechnology, research and genetics – especially for specimens whose viscosity must be reduced during centrifugation.
What makes the Sigma 3‑30KHS high speed centrifuge so attractive
The special drive system of the Sigma 3‑30KHS is specifically designed for use at very high speeds. This concept allows the high speed centrifuge to achieve RCF values above 70,000 x g with microlitre tubes.
The temperature adjustment range of the refrigerated and heated high-speed centrifuge is –20°C to +60°C.
A total of 20 rotors are available, along with a broad range of accessories. The tube capacities extend from 0.2 ml to 94 ml in fixed-angle rotors or 0.2 ml to 100 ml in swing-out rotors. Microtiter and deepwell plates can also be centrifuged.
The Sigma 3‑30KHS is also available as the Sigma 3‑30KSrefrigerated centrifuge. An inert gas port is optionally available for this device series.
To receive a no-obligation quote for the Sigma 3‑30KHS centrifuge, contact us directly or configure your preferred centrifuge and associated accessories here.
Nulla quis facilisis metus. Suspendisse potenti. Vivamus interdum, dui nec sagittis dapibus, sem risus tincidunt turpis, eu facilisis nibh turpis in eros. Sed facilisis nunc ac tellus lobortis, tempus porta lacus feugiat. Pellentesque non risus nec nunc consequat porttitor eu id ligula. Suspendisse ornare mi at tellus laoreet bibendum. Sed vel nibh faucibus, faucibus neque eleifend, elementum quam. Proin diam mi, pharetra sit amet mi auctor, placerat ornare purus. Vivamus mollis leo in magna rutrum, sit amet lacinia leo luctus. Pellentesque ullamcorper ut nunc sit amet eleifend. Quisque dignissim id felis at scelerisque. Aenean quis sagittis purus. Cras sed faucibus nulla.
Max. capacity [ml] | |
---|---|
swing-out rotor | 4 x 100 |
fixed-angle rotor | 6 x 94 |
Max. RCF | 70.121 |
Max. speed [rpm] | 30.000 |
Min. speed [rpm] | 100 |
Noise level at maximum speed (approximate) [dB(A)] | |
---|---|
fixed-angle rotor 12370 | ≤ 57 |
swing-out rotor 11171 with bucket 13299 + Cover | ≤ 53 |
Max. acceleration time [s] | |
fixed-angle rotor 12370 | ≤ 45 |
swing-out rotor 11171 with bucket 13299 + Cover | ≤ 19 |
Max. braking time [s] | |
fixed-angle rotor 12370 | ≤ 53 |
swing-out rotor 11171 with bucket 13299 + Cover | ≤ 13 |
Temperature setting range [°C] | -20 – +60 |
---|---|
Power consumption [W] | 1.800 |
Height x Width x Depth [mm] | 464 x 570 x 643 |
Height with open lid [mm] | 890 |
Weight without rotor [kg] | 100 |
Refrigerant | R452A |
Charge [kg] / Pressure [bar] | 0,415 / 28 |
CO2 equivalent [t] | 0,888 |
Sigma Spincontrol S - enabling Excellence in Separation | 1
Sigma Spincontrol S - enabling Excellence in Separation | 2
Sigma 3-30KS
Refrigerated high speed centrifuge
Outstanding high speed performance

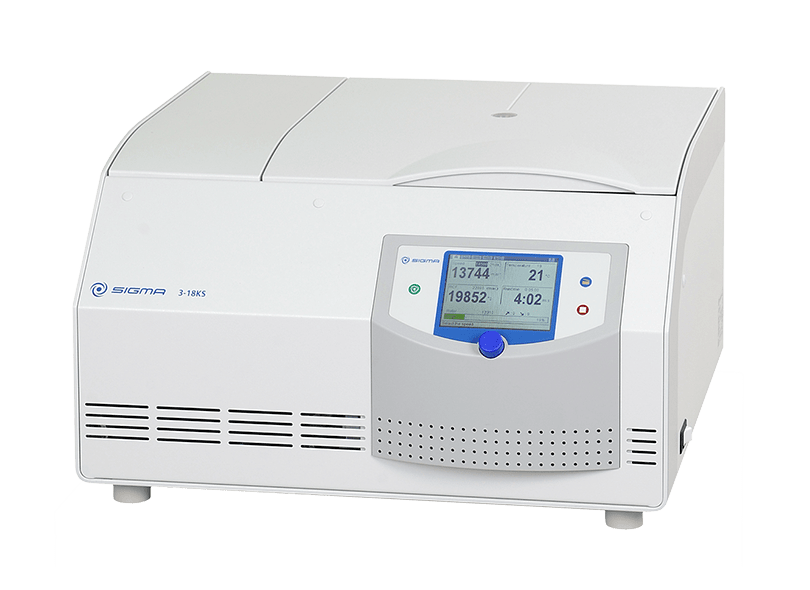

Sigma 3-18KHS
